Introduction

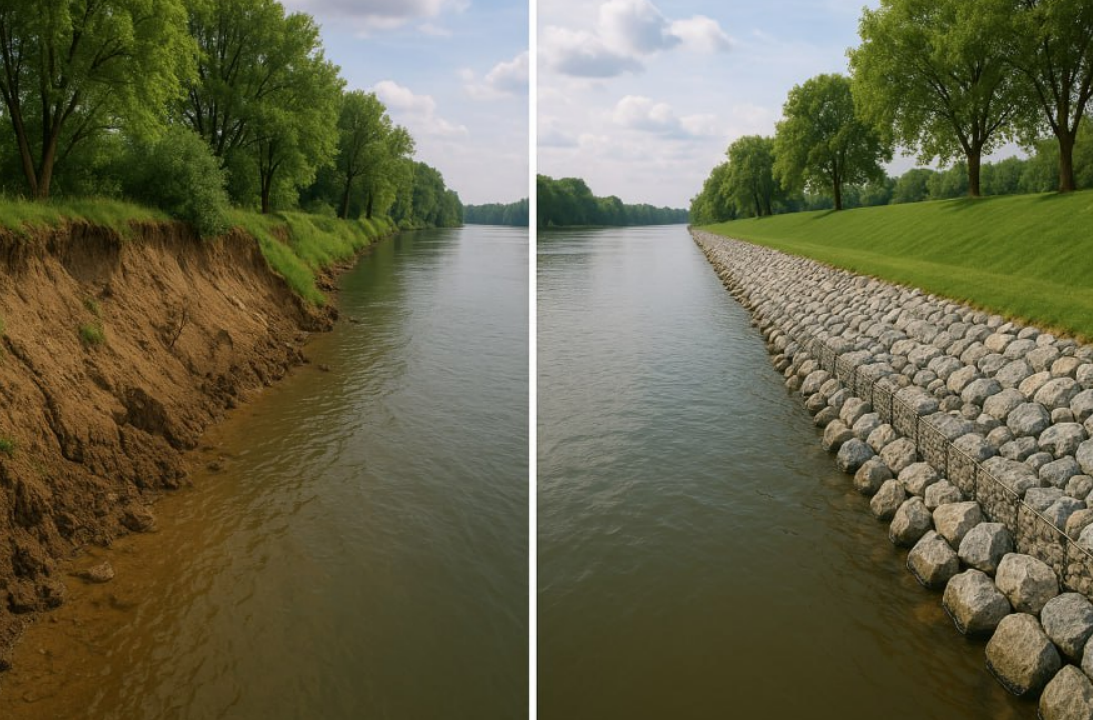

Riverbanks are dynamic natural features constantly shaped by flowing water. Whether for flood protection, infrastructure safety, or agricultural preservation, maintaining the stability of riverbank slopes is critical. Designing a stable slope for riverbanks requires a mix of geotechnical analysis, hydraulic engineering, and sustainable erosion control.
In this post, well will teach you the step-by-step process of designing slope stability for river banks: a long-lasting, construction professionals, stable riverbank slope—perfect for engineers, and environmental planners. By the end, you’ll understand slope stability analysis, retaining structures, erosion prevention, and real-world case studies to ensure your project succeeds.
1. What is River Bank Slope Stability?
Slope stability refers to the ability of soil or rock on a slope to resist movement. When applied to riverbanks, it involves preventing the sides of a river from collapsing or eroding due to water flow, rainfall, saturation, and other forces.
Consequences of Failure:
✔ Loss of land & property
✔ Damage to bridges & pipelines
✔ Increased sedimentation (harmful to aquatic life)
2. Why River Bank Slope Stability Matters
Riverbanks collapse due to:
🔷 Hydraulic Forces: The flow of water, especially during floods, can scour the base of the riverbank, leading to undercutting and slope failure. Flow velocity, turbulence, and direction all play key roles.
🔷 Soil Type: Clay, silt, sand, and gravel have different cohesion and friction properties. For example, clayey soils may hold together better than sandy soils but can fail if saturated.
🔷 Slope Geometry: Steep slopes are more prone to failure than gently sloped banks. A flatter slope spreads forces more evenly and is generally more stable.
🔷 Vegetation: Roots reinforce soil and reduce erosion. However, removal of vegetation for construction or farming weakens banks significantly.
🔷 Groundwater and Pore Pressure: High water tables increase pore pressure within the soil, reducing shear strength and increasing the likelihood of failure.
🔷 Human Activity: Construction near banks, river channel modifications, and mining activities can disturb natural equilibrium, accelerating erosion.
3. Step-by-Step Guide to Designing Stable Riverbank Slopes
Designing riverbank stability involves a balance of scientific understanding, engineering judgment, and environmental consideration. Here’s a step-by-step guide:
Step 1: Site Investigation & Soil Testing
Before any design, conduct a detailed geotechnical survey:
A. Soil Sampling & Classification
🔷Borehole drilling—to collect samples at different depths.
🔷Lab tests—Grain size distribution (sandy vs. clayey soil), Shear strength (direct shear test), Permeability (how quickly water flows through).
B. Slope Geometry Survey
🔷LiDAR or drone mapping to create a 3D terrain model.
🔷Identify existing cracks, slips, or weak zones.
C. Hydrological Analysis
🔷Study river flow velocity, flood frequency, and tidal effects.
🔷Use HEC-RAS software for hydraulic modeling.
This data allows engineers to model the existing conditions accurately.
Step 2: Slope Stability Analysis Methods
Using the data gathered, engineers perform stability analysis using software or analytical methods. Common techniques include:
A. Limit Equilibrium Method (LEM)
🔷Calculates Factor of Safety (FoS) against sliding.
🔷Common approaches:
✔ Bishop’s Method (best for circular failure)
✔ Janbu’s Method (for non-circular slips)
✔ Spencer’s Method (most accurate for complex slopes)
These methods calculate the factor of safety (FOS) of the slope. An FOS > 1.5 is generally considered safe for long-term stability.
B. Finite Element Analysis (FEA)
Advanced software (PLAXIS, GeoStudio) models:
➖Stress distribution
➖Pore water pressure
➖Seismic effects.
C. Probabilistic Risk Assessment
Uses Monte Carlo simulations to account for soil variability.
Step 3: Optimal Slope Design
A. Choosing the Right Slope Angle
🔷Soil Type Safe Slope Angle (Degrees)
🔷Loose Sand 27°–34°
🔷Compacted Clay 20°–25°
🔷Soft Silt 15°–20°
🔷Weathered Rock 45°–70°
Rule of Thumb:
Gentle slopes (3H:1V) = More stable but require more land.
Steeper slopes (1.5H:1V) = Need retaining walls.
B. Retaining Structures for Steep Banks
| Method | Best For | Cost (USD/m²) |
|---|---|---|
| Gabion Walls | High erosion areas | $50–$100 |
| Sheet Piles | Urban areas with space limits | $200–$400 |
| Reinforced Soil | Eco-friendly projects | $80–$150 |
Case Study: The Mississippi River uses articulated concrete blocks (ACBs) to resist high-velocity flows
Step 4: Erosion Control Techniques
A. Hard Engineering Solutions
✔ Riprap (Armor Stone): Large rocks (0.3m–1m) to absorb wave energy.
✔ Geotextile Tubes: Sand-filled tubes for temporary stabilization.
✔ Gabions: Wire mesh baskets filled with rocks offer flexible and strong protection.
✔ Concrete Revetments: Used in high-traffic waterways.
B. Soft Engineering (Bioengineering)
🔷 Vegetative Cover:
✔ Vetiver Grass (deep roots up to 3m)
✔ Willow Wattles (live branches that sprout roots)
✔ Coir Logs: Biodegradable fiber rolls for gentle slopes.
🔷Environmental Benefit: Improves biodiversity while stabilizing soil.
Step 5: Drainage Design &Seepage Control
Poor drainage often leads to failure especially Water is the #1 cause of slope failure. Solutions include:
A. Surface Drainage
✔ Slope terracing to reduce runoff speed.
✔ Grassed swales to channel water safely.
B. Subsurface Drainage
✔ French drains (perforated pipes in gravel)
✔ Geocomposite drains (modern alternative to gravel)
4. Monitoring & Maintenance
✔ Inclinometers → Detect soil and surveying slope movement over time.
✔ Piezometers → Monitor groundwater levels.
✔ Drone Inspections → Check for cracks or slumping.
Maintenance includes clearing vegetation, checking for erosion, and replacing damaged materials.
5. Real-World Case Studies
A. Netherlands’ Delta Works
❌ Problem: Rising sea levels.
🔷 Solution: Hybrid dikes (concrete + vegetation).
B. Mekong River (Cambodia/Vietnam)
❌ Problem: Severe bank erosion (up to 20m/year).
✔ Solution: Bamboo pile dikes + Vetiver grass.
🔷 Result: 70% reduction in erosion.
Common Mistakes to Avoid
🔷 Using inappropriate vegetation species
🔷 Ignoring subsurface water conditions
🔷 Oversteepening slopes to save space
🔷 Neglecting regular inspection and maintenance
🔷 Assuming uniform soil conditions without testing.
Conclusion
Designing stable slopes for riverbanks is not just about piling rocks or reshaping soil. It requires geotechnical expertise, hydraulic analysis, and smart erosion control. The goal is not only to prevent slope failure but also to integrate the bank with the surrounding environment in a sustainable way.
By following this guide—from soil testing to retaining walls—engineers can create a long-lasting, eco-friendly solution to ensure that the riverbank performs both structurally and ecologically.
Whether you’re a civil engineer, environmental manager, or a curious landowner, understanding riverbank slope stability is essential for protecting land, water, and life.
