How to Design Box Culvert By Hand Calculation

Box culverts are essential structures in civil engineering, widely used for drainage, pedestrian underpasses, and utility conduits. Their rigid, rectangular design makes them ideal for handling water flow, vehicular loads, and soil pressure.  Specifically, box culverts play a vital role in managing water flow, preventing road flooding, and ensuring structural stability in both urban and rural areas. This guide covers box culvert design principles, structural analysis, materials, construction methods, and real-world applications.

File Download is in below ðŸ”½

Box culverts are the workhorses beneath our roads, railways, and embankments, ensuring safe passage for watercourses, pedestrians, or even small vehicles. Designing these reinforced concrete structures, however, is a complex engineering challenge. It demands a meticulous balance between hydraulic efficiency – ensuring water flows correctly without causing erosion or flooding – and structural robustness to withstand immense pressures from surrounding soil, groundwater, and overlying traffic loads.

What is Box Culvert?

A box culvert is a rectangular structure made from precast or cast-in-situ reinforced concrete structure.

It is commonly used for:

✔️ allow water to pass beneath roadways
✔️ Pedestrian and animal underpasses.
✔️ Embankments
✔️ Utility tunnels (electrical cables, pipelines).
✔️ Stormwater drainage under roads and railways.

They are typically precast or cast-in-place and consist of a bottom slab, two vertical side walls, and a top slab — forming a box-like shape. These culverts are widely used in drainage systems, irrigation channels, and underpasses, especially where large water flow is expected. Compared to pipe culverts, box culverts offer greater capacity and are more structurally efficient in shallow flow conditions.

Advantages of Box Culverts

✔️ High load-bearing capacity (suitable for heavy traffic).
✔️ Durable and low-maintenance.
✔️ Smooth hydraulic flow (better than circular pipes).
✔️ Easier alignment with road geometry.

Components of a Box Culvert

A typical box culvert consists of the following components:

1. Side Walls —They withstand lateral earth pressure and water forces.
2. Top Slab (Deck)— It supports surface loads such as vehicles or railway traffic.
3. Bottom Slab (Base) —It distributes the structure’s load to the foundation or subgrade.
4. Apron and Cut-off Walls —They prevent scour and control flow velocity at the inlet and outlet.
5. Wing Walls and Headwalls —They used at culvert ends to retain soil and channel flow.

All parts must be carefully designed to meet hydraulic and structural requirements in constructions.

Types of Box Culverts

Type of box culverts can be classified based on below:

A. Size and Number of Cells:

✔️ Single-cell for small waterways
✔️ Multi-cell for wide channels or roads.

B. Construction Method:

✔️ Precast (manufactured in a factory and assembled on-site).
✔️ Cast-in-situ (built on-site).

Design Considerations for Box Culverts

A. Hydraulic Design

The primary purpose of a box culvert is to convey water safely and efficiently. The hydraulic design involves:

✔ Discharge Calculation — Use Rational Method or  Manning’s equation to determine water flow.
✔ Inlet & Outlet Design— Prevent erosion with wingwalls and headwalls.
✔ Scour Protection— Concrete or Riprap aprons may be needed.

Software tools like StormCAD and HEC-RAS  can aid in hydraulic modeling and flow analysis.

B. Structural Design

Structural integrity is essential to ensure the culvert withstands loads from above, lateral soil pressure, water pressure, and potential seismic activity.

Key aspects include:

✔ Dead Load (Weight of the culvert structure).
✔ Earth pressure (from backfill soil).
✔ Live loads (traffic, trains).
✔ Hydrostatic pressure (Water forces from inside and surrounding soil).

Reinforcement Design

Concrete must be designed according to standards such as AASHTO, IRC, or BS codes.
Reinforcement detailing is critical to prevent cracking and structural failure.

✔ Top slab: Designed for bending due to live loads.
✔ Bottom slab: Handles uplift pressure.
✔ Walls: Resist lateral earth pressure.

Finite element analysis (FEA) is commonly used for detailed structural analysis of box culverts.

Construction Methods

A. Cast-in-Situ Box Culverts

✔️ Customizable for complex sites.
✔️ No transportation constraints.

The below are the process to construct for Cast-in-situ  Box Culvert:

✔  Site excavation and leveling.
✔  Formwork and reinforcement installation.
✔  Concrete pouring in sequence (Bottom Slab → Walls → Top Slab)
✔  Curing and backfilling.

B. Precast Box Culverts

✔️ Faster installation (craned into place).
✔️ Better quality control (factory-made).

The below are the process to construct for Precast  Box Culvert:

✔ Factory casting of units.
✔ Site preparation.
✔ Transportation and placement using cranes.
✔ Joint sealing and alignment.
✔ Backfilling and compaction.

Precast culverts allow faster installation and better quality control but may involve higher transportation and lifting costs.

Main Key Construction Steps

1. Excavation & Bed Preparation (Compacted granular base).
2. Formwork & Reinforcement Fixing.
3. Concrete Pouring & Curing (28-day strength).
4. Backfilling & Compaction (to avoid settlement).

Common Design Mistakes & How to Avoid Them

❌ Poor Joint Design → Causes leaks.
✅ Solution: Can use rubber gaskets or hydrophilic strips.
❌ Inadequate Waterway Opening → Leads to flooding.
✅ Solution: Can use 100-year flood data for sizing.
❌ Insufficient Reinforcement → Cracks under load.
✅ Solution: Can follow IS 456 or ACI 318 standards.

Common Design Standards

Designs are typically governed by country-specific codes, such as:

✅ AASHTO LRFD (USA)
✅ IRC 112:2011 (India)
✅ BS EN 1992 (Eurocode for Concrete Structures)

These standards provide guidance on:

✔ Load combinations
✔ Material strengths
✔ Reinforcement detailing
✔ Durability requirements.

Challenges in Box Culvert Design

1. Hydraulic Capacity vs. Headroom→ All designers must balance the need for water capacity with vertical clearance limits under roads or railways.
2. Foundation Settlement → Poor soil conditions can lead to uneven settlement, causing structural issues.
3. Durability in Aggressive Environments→ In areas with acidic soils or saline water, concrete must be designed for chemical resistance.
4. Cost vs. Benefit → Larger box culverts can increase construction costs, so the economic feasibility must be considered.

Real-World Application: Successful Box Culvert Project

Project: Highway drainage culvert in Texas, USA.
Challenges: High traffic load + flood risk.
Solution:
- Double-cell box culvert (increased flow capacity).
- Reinforced with epoxy-coated bars (for corrosion resistance).
✔ Result: No flooding in 10+ years.

Future Trends in Box Culvert Design

✔ Smart culverts with embedded sensors for flood monitoring.
✔ 3D-printed culverts (experimental but promising).
✔ Fiber-Reinforced Polymer (FRP) culverts (lighter, corrosion-free).

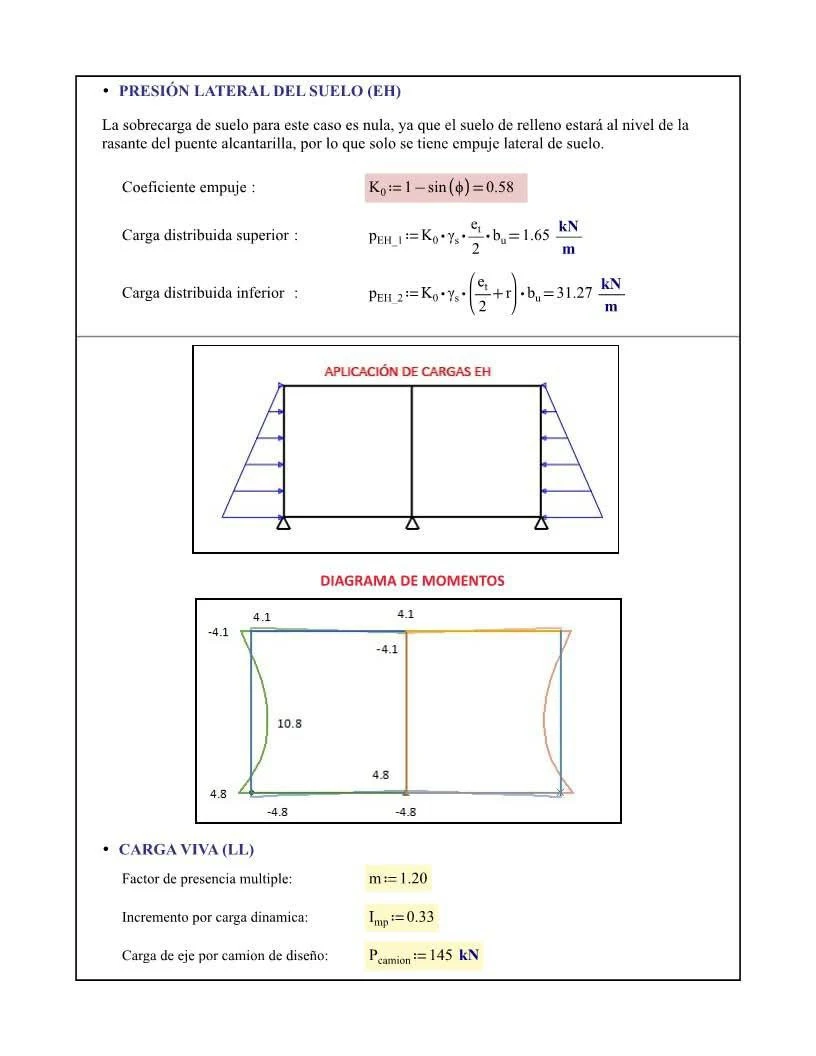

Example for Box Culvert Design By Hand Calculation














Conclusion

Box culvert design requires hydraulic efficiency, structural stability, and proper construction techniques. By following AASHTO, IRC, or Eurocode standards, engineers can ensure long-lasting, cost-effective solutions.

As climate change increases the frequency of extreme weather events, the role of culverts in flood prevention and drainage has become more important than ever. By understanding the fundamentals of box culvert design, engineers can contribute to safer, more resilient infrastructure.
